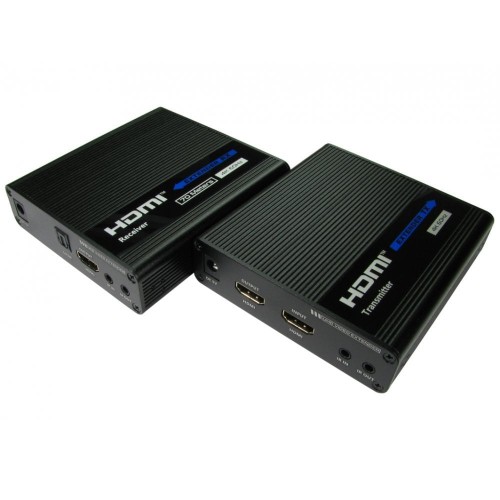

The HD-EX270 HDMI extender allows you to extend the distance of your HDMI 2.0 signal up to 70m via a single Cat6 / Cat6A / Cat7 Ethernet cable.

The extender supports resolutions of up to 2016p at 60Hz, whilst also supporting High Dynamic Range with HDR10.

It also supports I/R pass through via the supplied adapters.

Features

• HDMI Version: HDMI 2.0 (HDMI 1.4 compatible)
• HDCP Version: HDCP 2.2 (HDCP 1.4 compatible)
• Transmission Medium: Cat6 / Cat6A / Cat7
• Transmission Distance: Up to 70 metres
• Video Bandwidth: 18Gbps
• Max Input Cable Length: 8m (24AWG)
• Max Output Cable Length: 8m (24AWG)
• Audio Support: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH

• 4K UHD Signal Transmission
• HDR10 (YUV4:4:4)
• HDMI Local Loop Output
• Audio output selector (ARC or S/PDIF)
• EDID through
• Bi-directional IR control

Contents

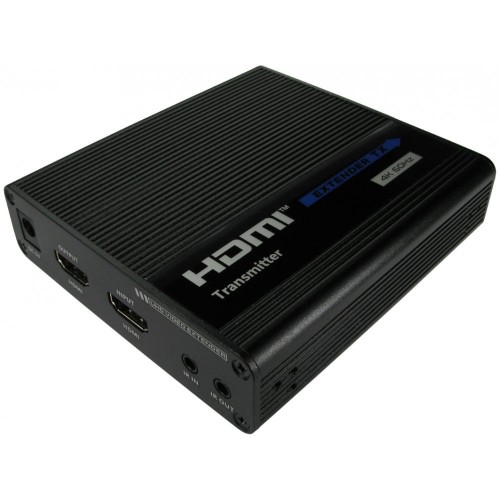

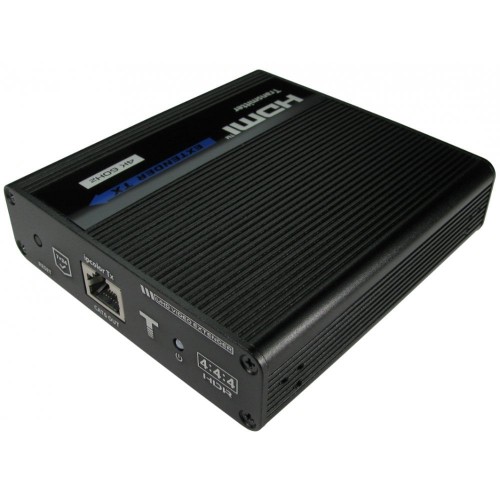

• 1x HDMI Sender

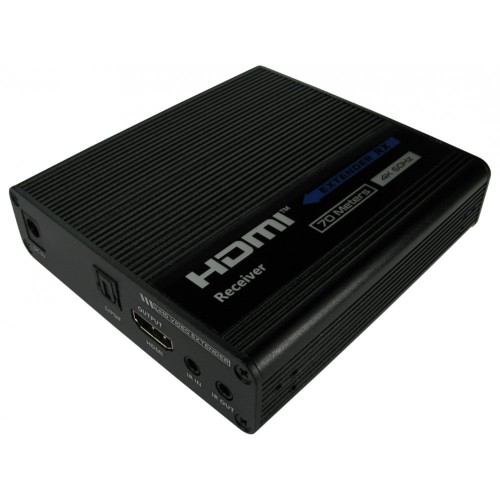

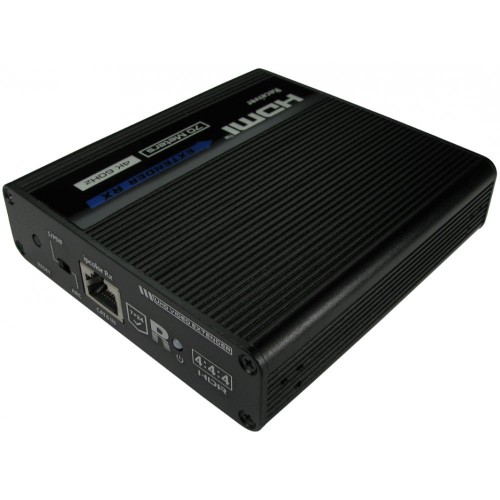

• 1x HDMI Receiver
• 2x Power Supplies
• 1x IR Blaster
• 1x IR Receiver
• Mounting Brackets
• 1x User Manual
